Hydraulic 75mm Corrugated Metal Roofing Machine 0.3mm Standing Seam Roof Former

Brand Name : DLY

Model Number : sinus

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 30sets/month

Delivery Time : 40 days

Packaging Details : naked or wooden

name : Corrugated Roofing Machine

Weight : 6500kgs

Control system : PLC Control with touch screen

Shaft Diameter : 75 mm

Roller station : 22 stations

Cutting type : Automatic Hydyaulic Cutting

Raw material thickness : 0.3mm - 0.8mm

Raw material : PPGI/Galvanized sheet

Contact Now

1250mm 380V Sinus Corrugated Machine With Hydraulic Cutting

1. Description of Corrugated Roofing Machine

Now our corrugated sheet roll former have been exported to many countries, the most important is that all you need can be customized. There are different popular width of coils in different market, so there are different width of corrugated sheets.

If you have coil width is 1250mm, the width of corrugated sheet will be 1064mm.

If you have coil width is 1200mm, the width of corrugated sheet will be 988mm

If you have coil width is 1000mm, the width of corrugated sheet will be 836mm

If you have coil width is 914mm, the width of corrugated sheet will be 762mm

2. Specifications of Corrugated Roofing Machine

Item	Name	Description
1	Feeding device	with two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers.
2	Machine body	350H steel welded
3	Machine frame	18mm middle plate welded
4	Roller station	16 stations
5	Roller material	45# steel with quenched treatment and hard chroming
6	Shaft diameter	80mm,solid
7	Shaft material	45# steel with tempering treatment
8	Motor power	5.5 kw
9	Speed	0-20m/min
10	Transmission	By Double chains
11	Voltage	380V,50HZ,3PH

3. workflow of Corrugated Roofing Machine

Manual decoiler——Feeding——Roll forming——Hydraulic stamp and cutting——Output table

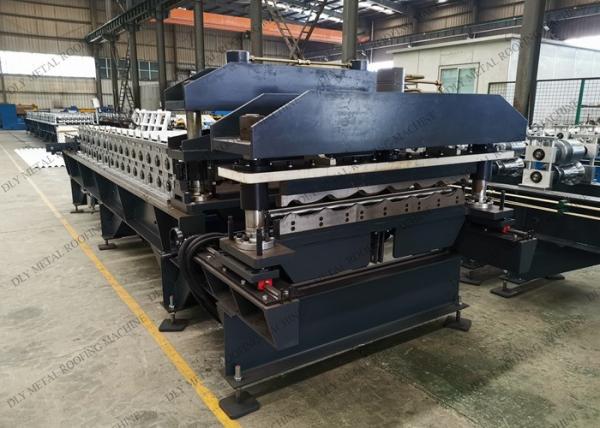

Hydraulic 75mm Corrugated Metal Roofing Machine 0.3mm Standing Seam Roof Former

4. Service of our Corrugated Roofing Machine

Free technical support and free accessories supply.
Engineer available to service machinery overseas.
One year warranty is provided.
Long life technical guidance for free.
We always offer technical support, quick response, all your inquire will be replied in 24 hours.

5. details of Corrugated Roofing Machine

Hydraulic 75mm Corrugated Metal Roofing Machine 0.3mm Standing Seam Roof Former
