15kw Automatic 1250mm Corrugated Roofing Machine With Hydraulic Cutting
1. Description of Corrugated Roofing Machine
Corrugated sheet as a durable and economical product, always popular for customers and makes huge demand in worldwide markets.
We knows well on corrugated machine, we offer 76.2mm(3 inch) pitch as standard profile and also customize heavy duty profile which thickness up to 4mm for agricultural solutions.
This serious including heavy duty profile and standard 76.2mm(3 inch) pitch with 914mm(3ft), 1000mm, 1220mm(4ft) width available for both Coated Coil (PPGI/PPGL) and Galvanized Coil (GI/GL).
2. Specifications of Corrugated Roofing Machine
| Machine Specifications |
| Weight | About 7500kgs |
| Size | About 10m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow |
| Suitable Raw Material |
| Material | Colored Steel Coils |
| Thickness | 0.3-0.7mm |
| Coil width | 960mm |
| Yield Strength | 550Mpa |
| Main Technical Parameters |
| Quantity of forming rollers stations | 20-22 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| Hydraulic unit motor power: 3kw |
| Electric voltage | According to customer’s requirement |
3. Composition of Corrugated Roofing Machine
Roll forming main machine…………………………1 unit
Automatic de coiler………………………………...… 1 unit
Control panel…………………………………………...1 unit
Hydraulic cutting system…………………………...…1 unit
Auto stacker………………………………………......1 unit
4. Main Character of Corrugated Sheet Roll Forming Machine
- Simple structure, good appearance since the whole machine is used profiled steel structure and wholly manufacturing after welding, in order to make it running stable and reliable.
- Completely automatic cutting, accurate length, and position trim cutting for the rear of profile sheets, no deformation.
- Easy installation, good performance for manufacturing in the factory.
- Low noise, high efficiency.

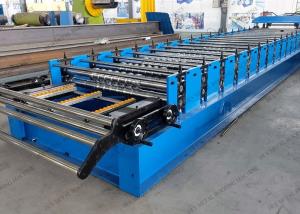

5. details of Corrugated Roofing Machine
